Twitter 1.25 Lac / 1 Piece
| Business Type | Manufacturer, Exporter, Supplier |
| Finishing | Testing |
| Color | White, White,White,White |
| Condition | New |
| Click to view more | |
Preferred Buyer From
| Location | Worldwide |
Product Details
Power Source
Electric
Automation Grade
Semi-Automatic
Application
Testing Wire Harness/Cables,Cable Tester
Feature
Fine Finished, Good Quality, Good Strength
Voltage
240 V
Packaging Type
Wooden Box
Type
Wire Testing Machine,Harness testing,Harness testing
Country of Origin
India,India
Load Weight
500g.
Power
Electronic
Model Number
IE-UB
Machine Name
Wire Harness Tester
Test Pin
128 Pin
Test Mode
Auto, Manual
Weight
15 Kg
Max Test Voltage
AC1000/DC1500V
Size
425 x 190 x 350mm
Material
steelness steel
Brand
Indoe enterprises
Warranty
1 year
Product Code
IE- Harness Testing
Port
transport, supliear
Payment Terms
Other
Delivery Time
1-5 days
Packaging Details
Soft foam and Wooden box packing
Packaging Details carton, packing size 425*190*350mm, packing weight: 15KG for Electrical harness tester
Packaging Details carton, packing size 425*190*350mm, packing weight: 15KG for Electrical harness tester
Product Description

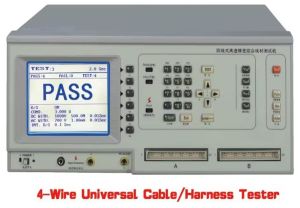

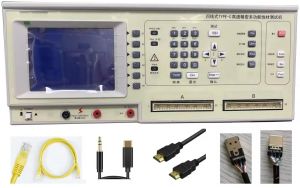

Description of harness testing series Electrical harness tester:
The harness testing series Electrical harness tester is used for test and measure wire cable harness,wire harness, like as : auto
cable,audio cable, power cable, network cable, telephone cable, USD cable, HDMI cable,video cable, etc. .
Feature of IE- series Electrical harness tester:
1. Up to 700Vdc/500Vac Test Voltage
2. 512 Max. Test Points
3. Auto Scan and Auto Pin Search
4. Intermittent Conductance Test
5. Intermittent Open/Short Test
6. Providing Single-End Testing
8. Large 320×240 LCD Display
9. Full Programming Sequence Test
10. Versatile I/O Ports for application
11. Statistics and Print Function
Test function IE- Harness testing series Electrical harness tester:
The harness testing series Electrical harness tester is used for test and measure wire cable harness,wire harness, like as : auto
cable,audio cable, power cable, network cable, telephone cable, USD cable, HDMI cable,video cable, etc. .
Feature of IE- series Electrical harness tester:
1. Up to 700Vdc/500Vac Test Voltage
2. 512 Max. Test Points
3. Auto Scan and Auto Pin Search
4. Intermittent Conductance Test
5. Intermittent Open/Short Test
6. Providing Single-End Testing
8. Large 320×240 LCD Display
9. Full Programming Sequence Test
10. Versatile I/O Ports for application
11. Statistics and Print Function
Test function IE- Harness testing series Electrical harness tester:
|
Item
|
Symbol
|
Test range
|
|
Conductance
|
COND
|
0.1Ω~50Ω
|
|
Resistance
|
R
|
0.1Ω~1.0MΩ
|
|
Insulation
|
IR
|
1MΩ~500MΩ
|
|
Open/ Short
|
O/S
|
2KΩ~50KΩ
|
|
Intermittent O/S Test
|
||
|
Intermittent Cond.
|
0.1Ω~50Ω
|
|
|
Single-End Test
|
||
|
Open / Short terminal Judgment
|
Specification of IE-Harness testing series Electrical harness tester: :
|
Advanced Functions
|
Programmable Sequential Test
|
|
Auto Pin Search
|
|
|
Self Diagnostic
|
|
|
Self Calibration
|
|
|
Basic Accuracy
|
±5%
|
|
Scanning Mode
|
Auto/Short Switchable
|
|
Meas. speed
|
0.1 Sec Basic
|
|
Test Signal Information
|
200~700Vdc / 500Vac
|
|
DC Insulation /Hi-pot
|
±5% Accuracy
|
|
Display and Sound
|
320×240 Graphic LCD Display
|
|
6 Digits Numeral Formatting
|
|
|
Pass/Fail LED Indicator/LCD Display
|
|
|
Internal Speaker
|
|
|
Connections
|
128 Test Points
|
|
256/512 Points Optional
|
|
|
Hi-pot Calibration +/- Output
|
|
|
Auto Pin-Search Jack
|
|
|
Front Panel Buttons
|
Sys Key/Fast Key/Edit Key/Soft Key
|
|
I/O Interface
|
Printer Port
|
|
Remote ControlPort (Optional)
|
|
|
IE-232 Port (Optional)
|
|
|
IE-485 Port (Optional)
|
|
|
Memory
|
Built-in 512KB SRAM
|
|
Battery Backup
|
|
|
Power Supply
|
Switching 115/230 Vac±10%
|
|
50/60Hz
|
|
|
Accessory
|
Auto Pin-Search Probe
|
|
2-in-1 64Pin DIN-to-Horn Converter
|
|
|
Remote Control Cable (Optional)
|
|
|
IE-232 Cable (Optional)
|
|
|
GPIB Cable (Optional)
|
|
|
Power Cord
|
|
|
3→2 Power Line Adapter
|
|
|
User's Guide
|
|
|
Temperature & Humidity
|
15°C~35°C
|
